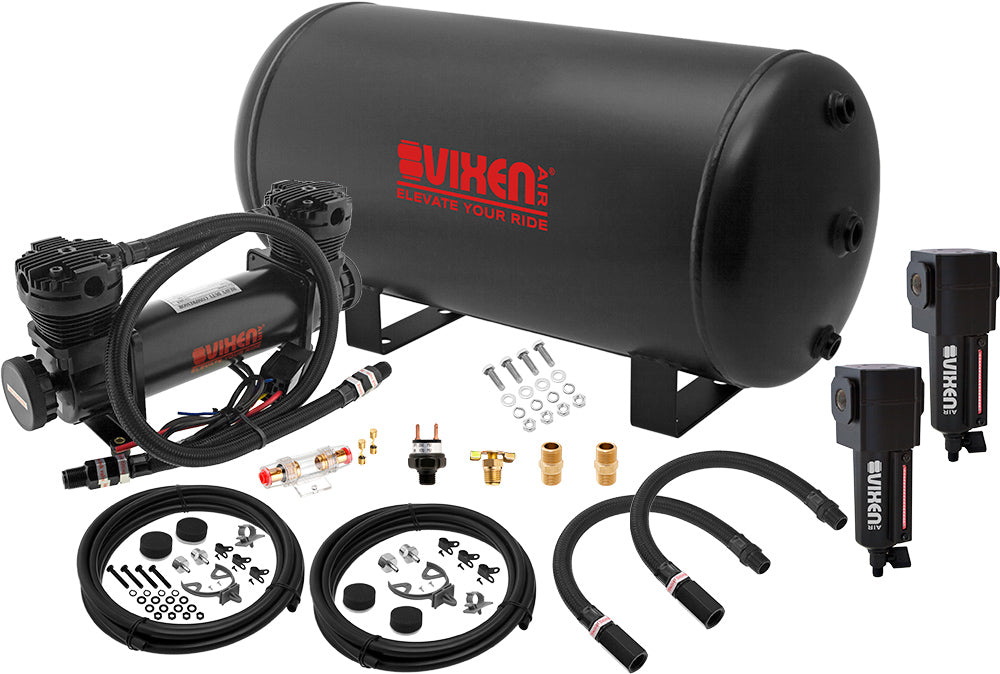

This on-board system is specifically designed for air suspension but can also be used with any high-pressure air horn or power tool that requires an on-board air system. Comes with a 6 Gallon steel air tank featuring 9 air ports, 300 PSI heavy duty black color dual cylinder air compressor with remote filter kits, hoses extensions, pressure switch, water traps with couplings, drain valve, heavy duty 80A in-line relay, 60A in-line fuse with waterproof holder, and mounting hardware. This system will set your vehicle above the rest.
VIXEN AIR VXO8863DBF 6 GALLON STEEL AIR TANK WITH DUAL CYLINDER 300 PSI AIR COMPRESSOR ONBOARD AIR SYSTEM
$448.97
- Air Compressor

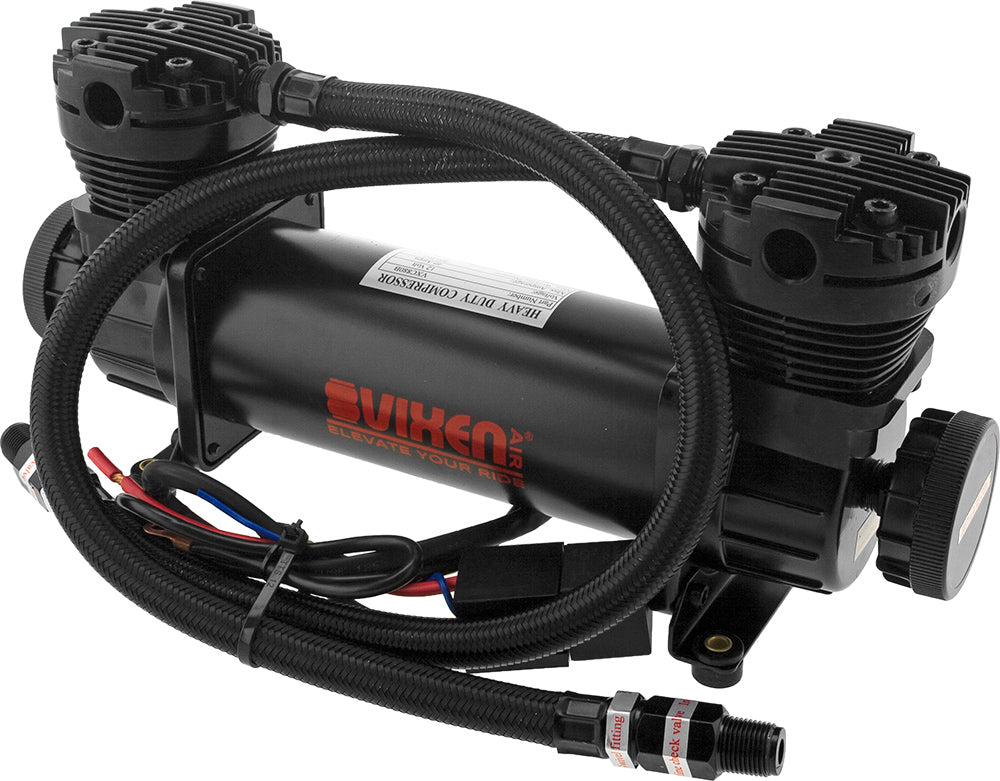

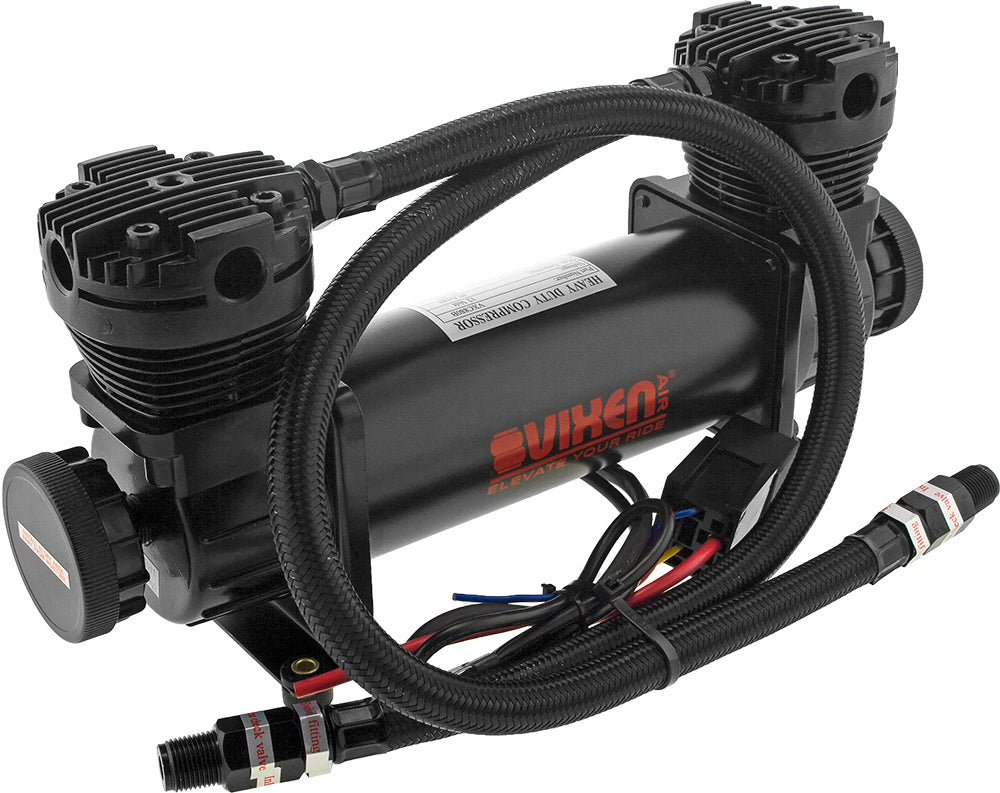

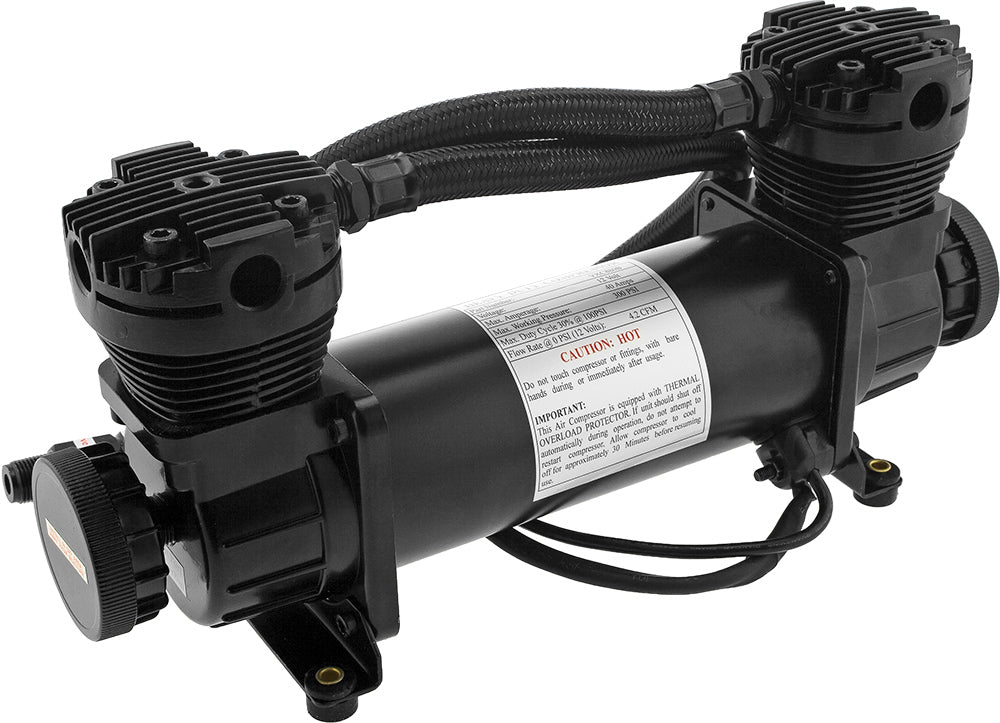

- 300 PSI Dual Cylinder VortexX Air Compressor Black
- 12V Permanent Magnetic Motor
- Maximum Working Pressure: 300 PSI
- Duty Cycle: 30% @ 100 PSI
- Amperage Draw: 40A
- Flow Rate: 4.2CFM @ 0 PSI
- Sealed Construction
- Oil-less Design
- Moisture and Dust Resistant
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- 3/8" NPT Stainless Steel Braided Leader Hoses with 3/8" NPT Check Valves
- Intake Air Filters with Remote Installation Kit (10 FT Hoses and Four replacement filter elements Included)
- Insulated Wiring with Connectors
- 80A 4-PIN In-line Relay
- 60A In-line Fuse with Waterproof Holder
- Mounting Hardware Included
- Dimensions: 14" L x 4" W x 6-¾" H
- Air Tank

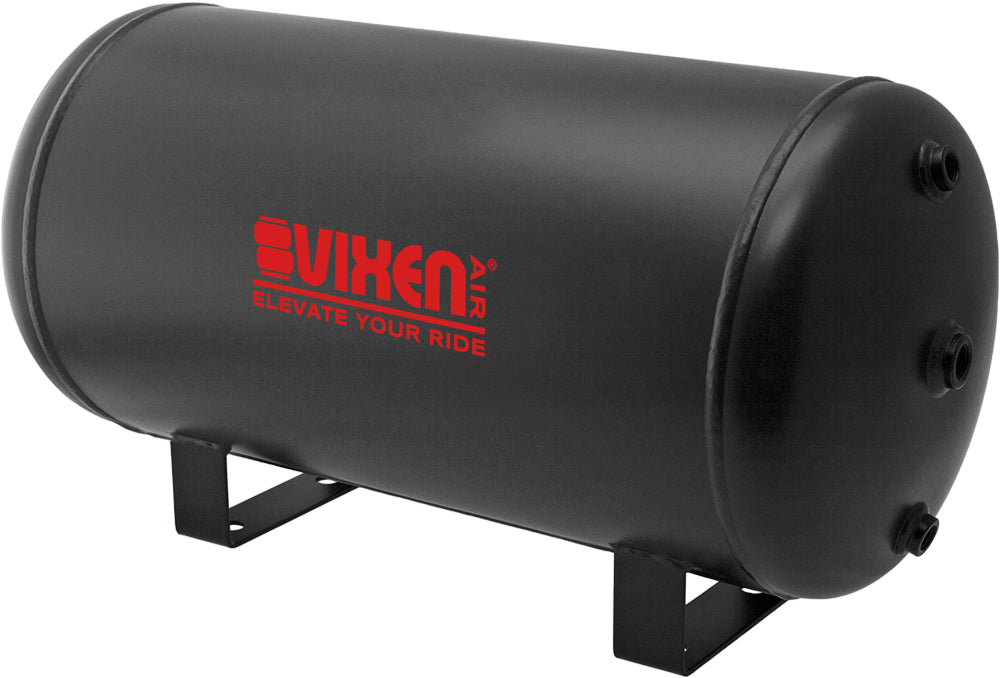

- 6 Gallon Steel Air Tank
- Capacity: 6 Gallon (22 Liter)
- Pressure Rating: 200 PSI

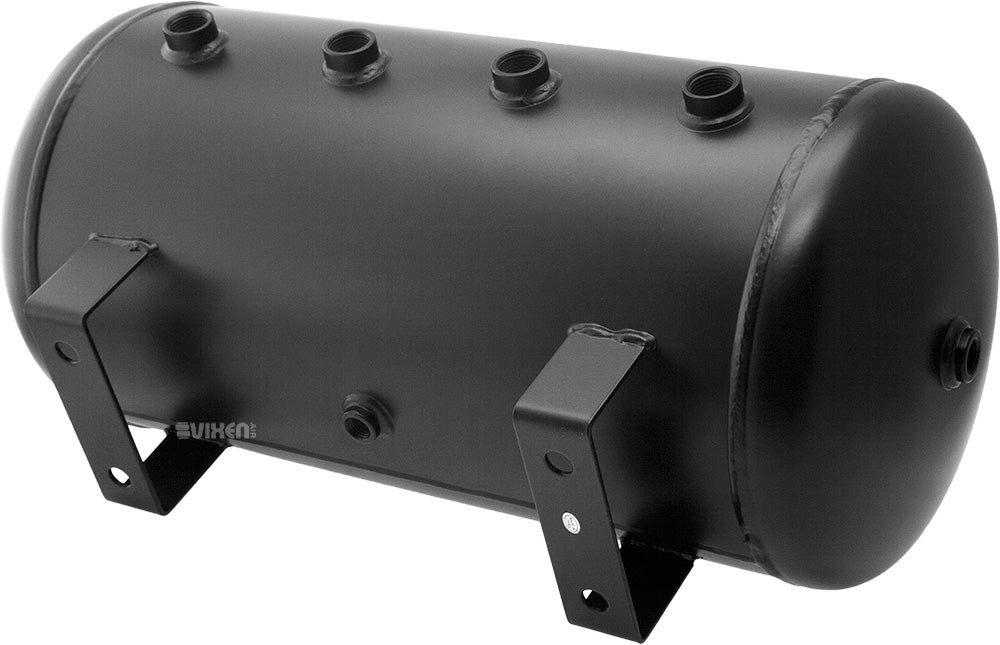

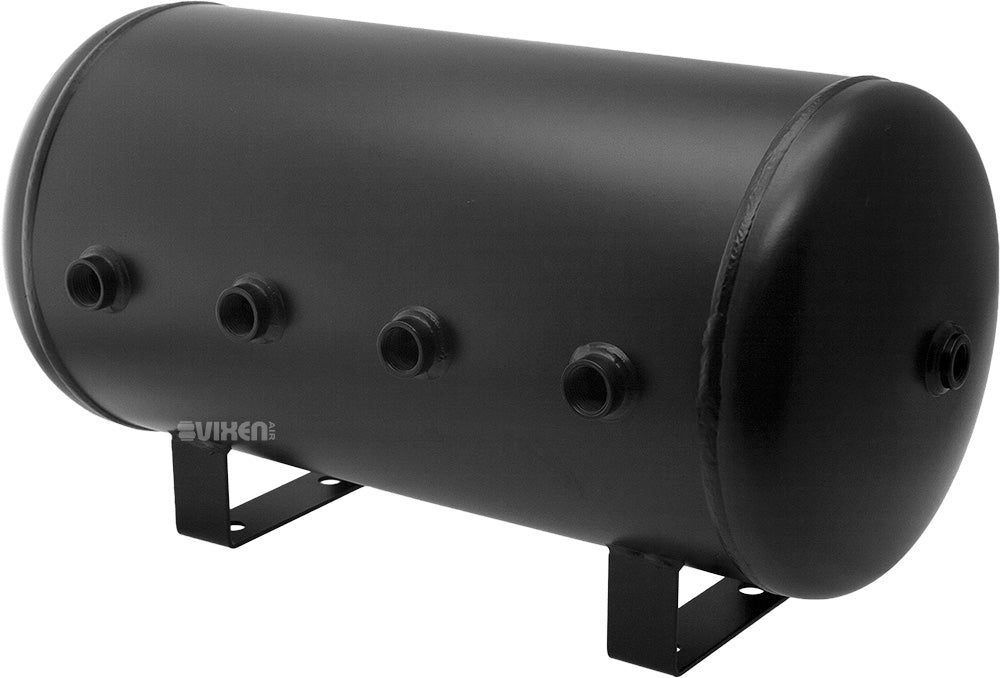

- 9 Ports: 4 x ½" NPT, 2 x 3/8" NPT, 3 x ¼" NPT
- For high air flow applications such as Air Suspension and Train Horns
- Anti-Corrosion Black Matte Powder Coating
- Precision Welded

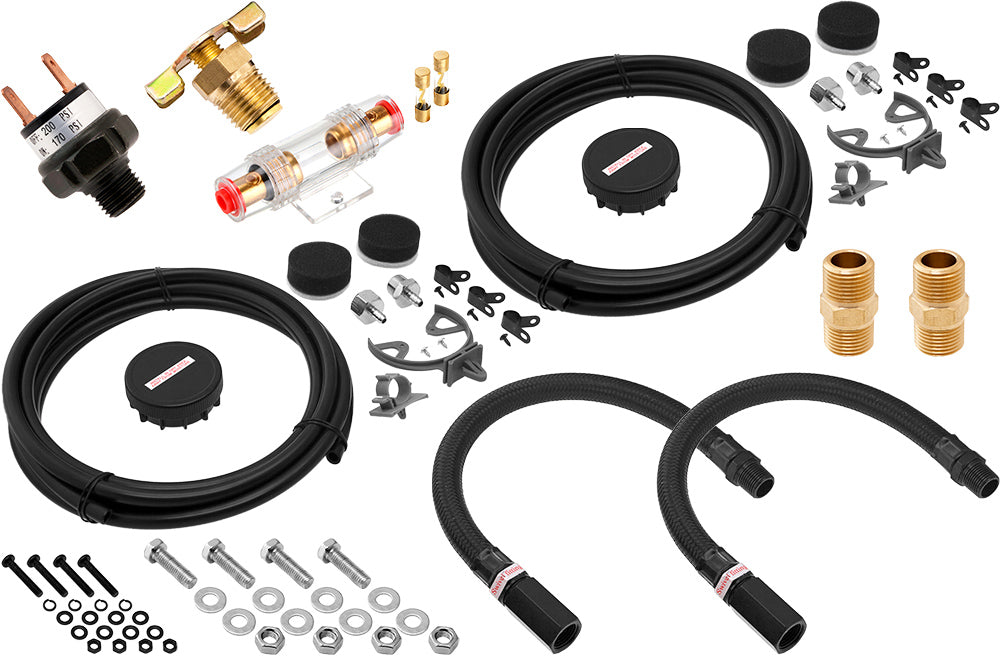

- Included with this kit:
- 6 Gallon Steel Air Tank
- 170-200 PSI Pressure Switch

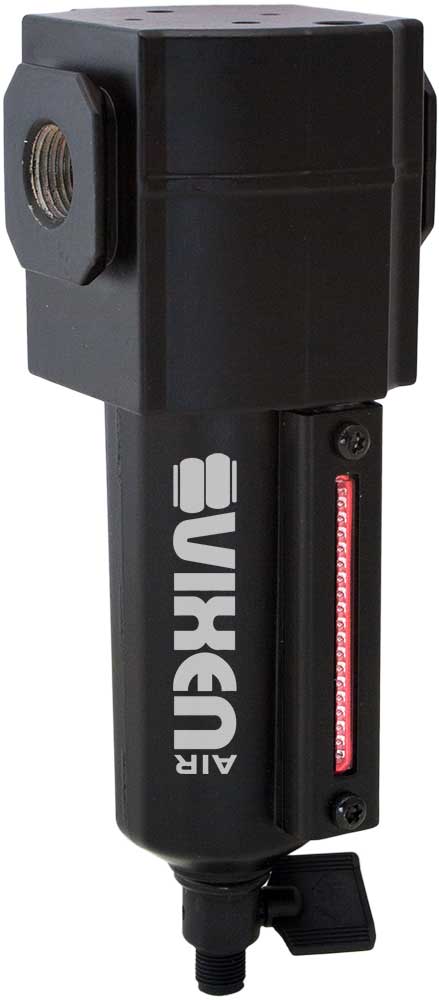

- 3/8" NPT In-line Aluminum Air Filter (Water Trap) x 2
- 3/8" NPT Male Straight Coupling x 2
- 3/8" NPT Female to Male Braided Leader Hose 12" Extension (Black) x 2
- ¼" NPT Wing Style Drain Valve
- Mounting Hardware
- Dimensions: 19-¾" L x 11" H, 9-3/8" Dia
