VIXEN AIR VXF4CM14BPRO 12V 1/4" NPT SUSPENSION MANIFOLD WITH 7-SWITCH CONTROLLER
$328.18
Skip to product information

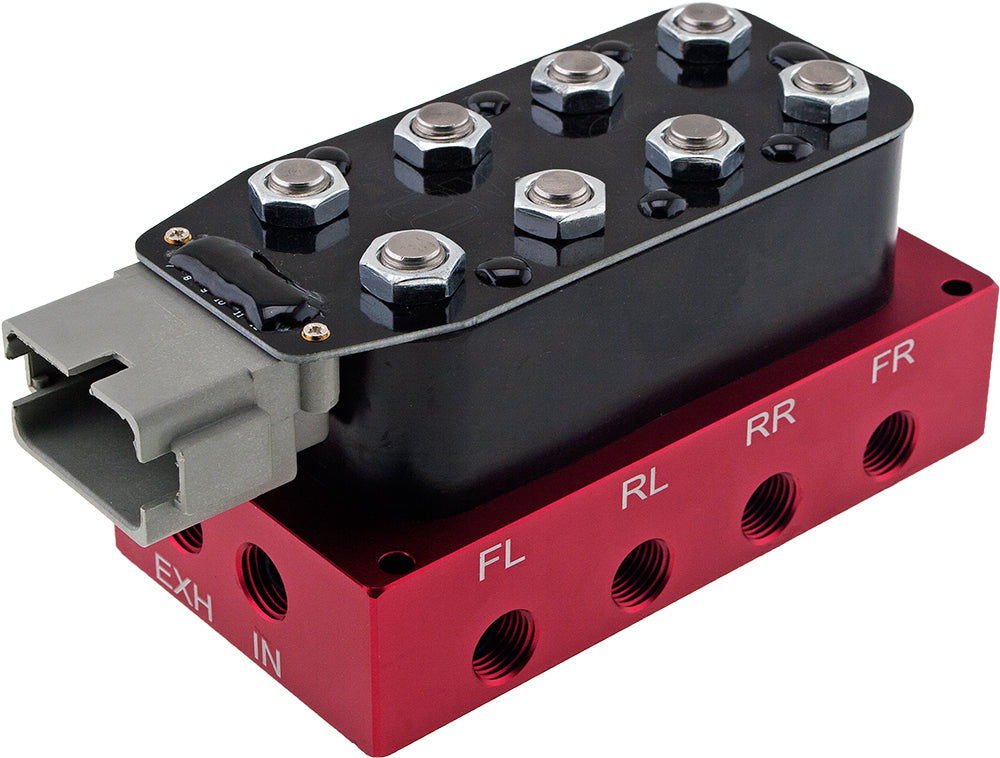

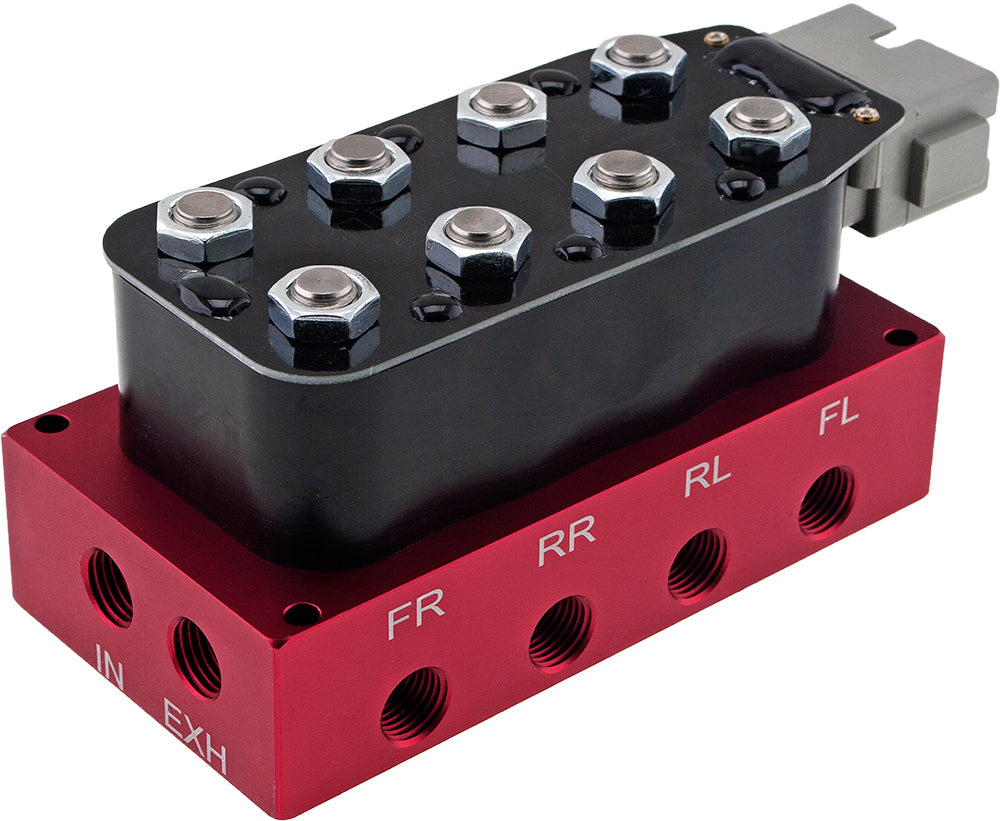

This manifold will inflate and deflate the air springs using two ¼" NPT Intake and two ¼" NPT Exhaust ports. The ports connecting the air line to the air spring are ¼" NPT while the ports connecting the air lines to the air gauges are ¼" NPT. Includes a 7-Switch Controller with weather-proof plug-n-play harness that not only controls 8 valves individually, but also improves the appearance and guarantees proper operation on every set-up. The robust internal solenoid valve structure maximizes flow rates and guarantees operation up to 230 PSI for millions of cycles. In addition, the manifold can be connected to a switch panel or remote control using the included wire harness with color-coded wires which provides a seamless installation and reliable operation with your accessories.
VIXEN AIR VXF4CM14BPRO 12V 1/4" NPT SUSPENSION MANIFOLD WITH 7-SWITCH CONTROLLER
$328.18
- ¼" NPT Suspension Manifold Air Valve (Red)
- Power Source: 12V
- Max Air Pressure: 230 PSI
- Two ¼" NPT Female Inlet ports
- Two ¼" NPT Female Exhaust ports
- Four ¼" NPT Female Air Spring Ports
- Four ¼" NPT Female Air Gauge Ports
- Fully Sealed Enclosure
- Dust and Water Protection (IP65 Rated)
- 2-way valves (normally closed)

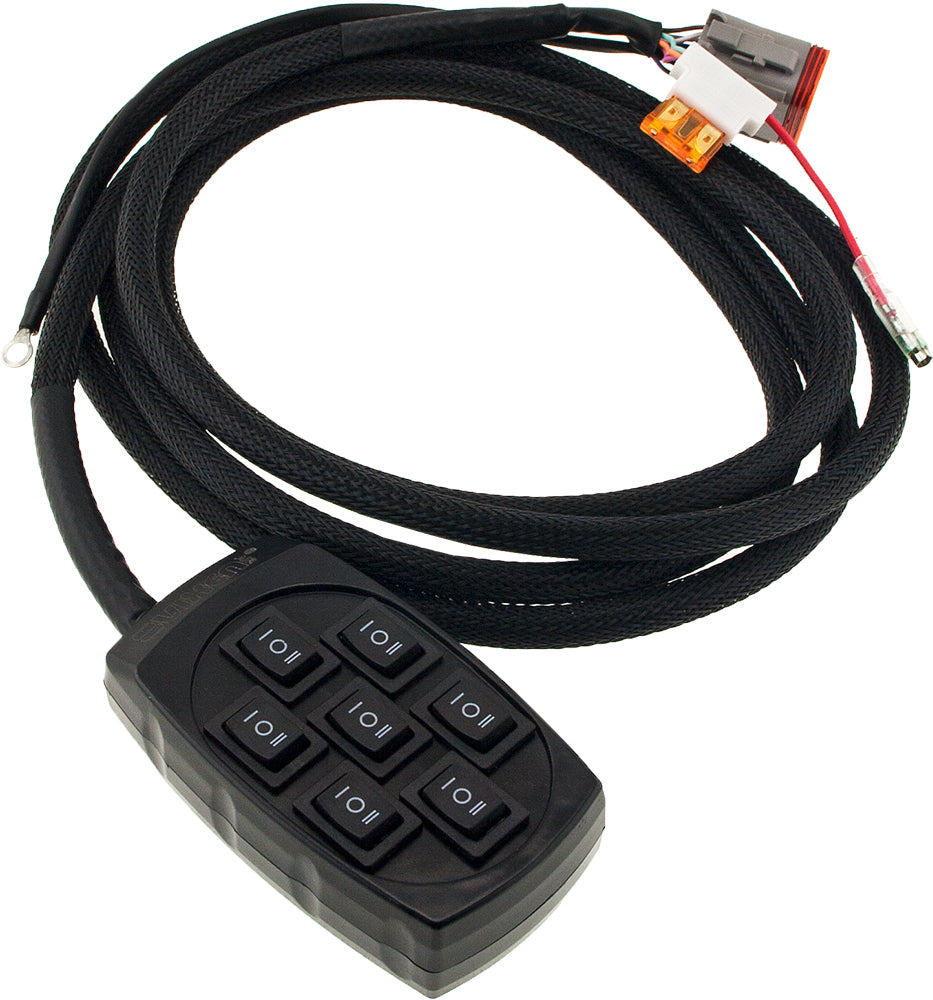

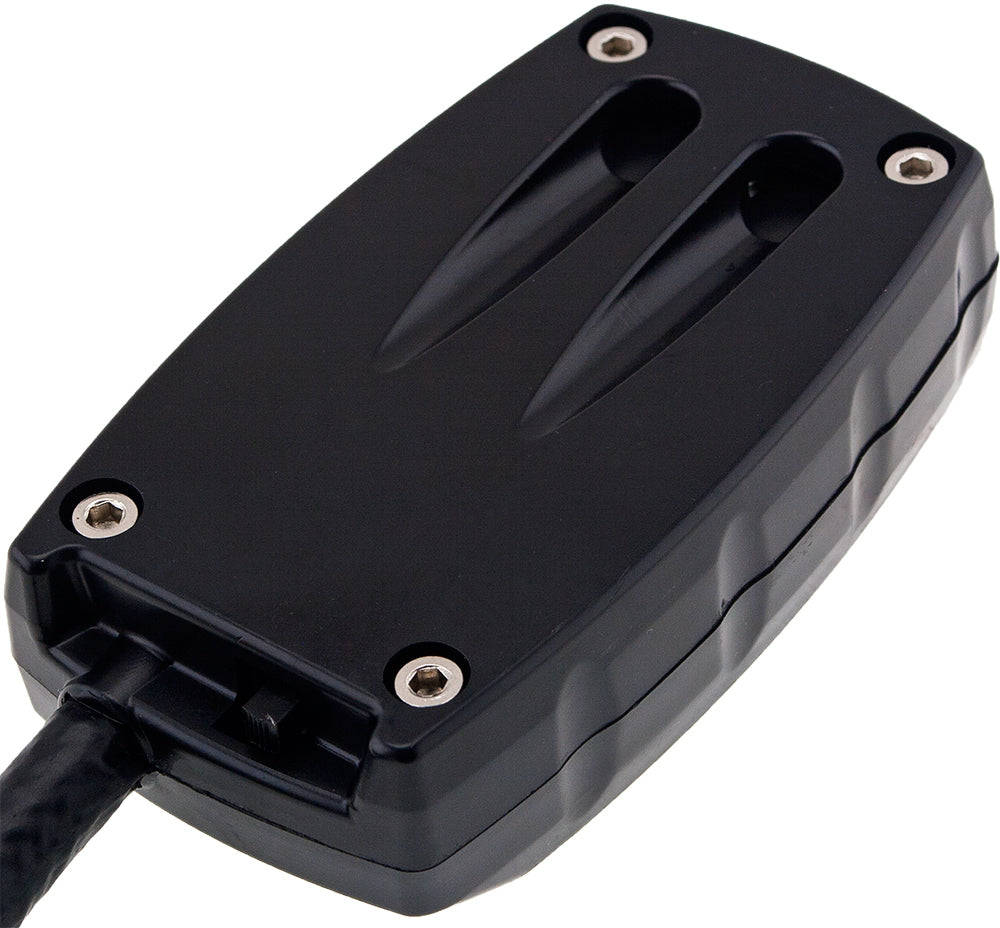

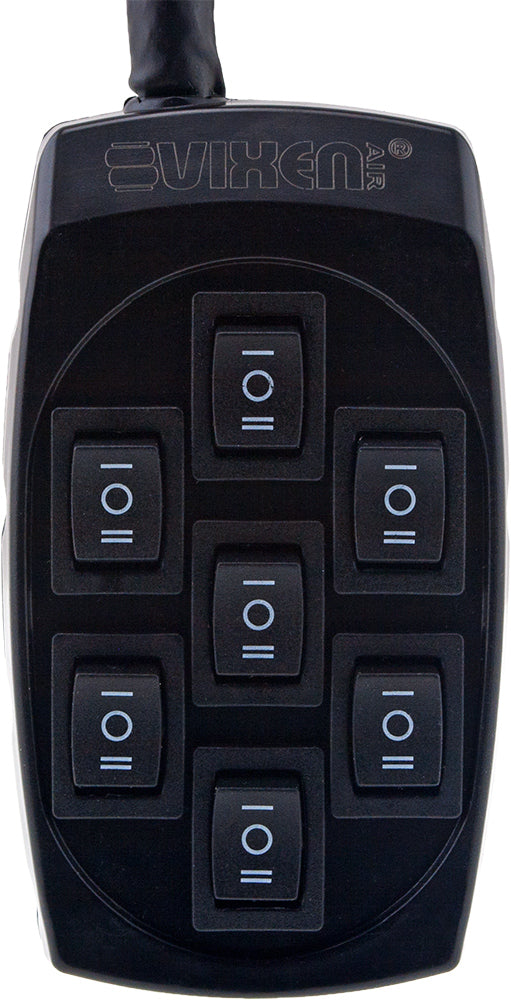

- 7-switch Controller with weather-proof plug-n-play 8 FT fused harness for fast and accurate wire connections

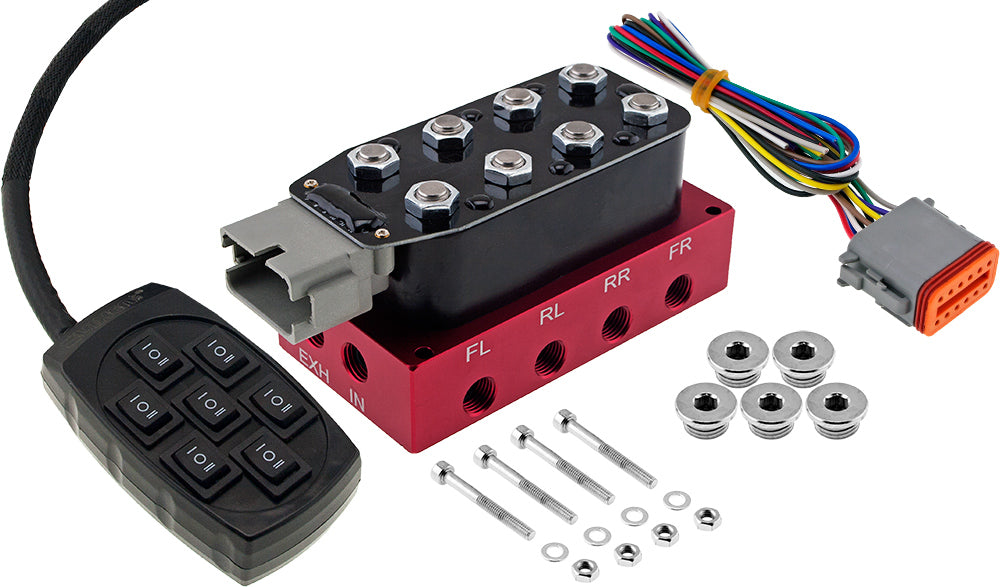

- Included with this kit:

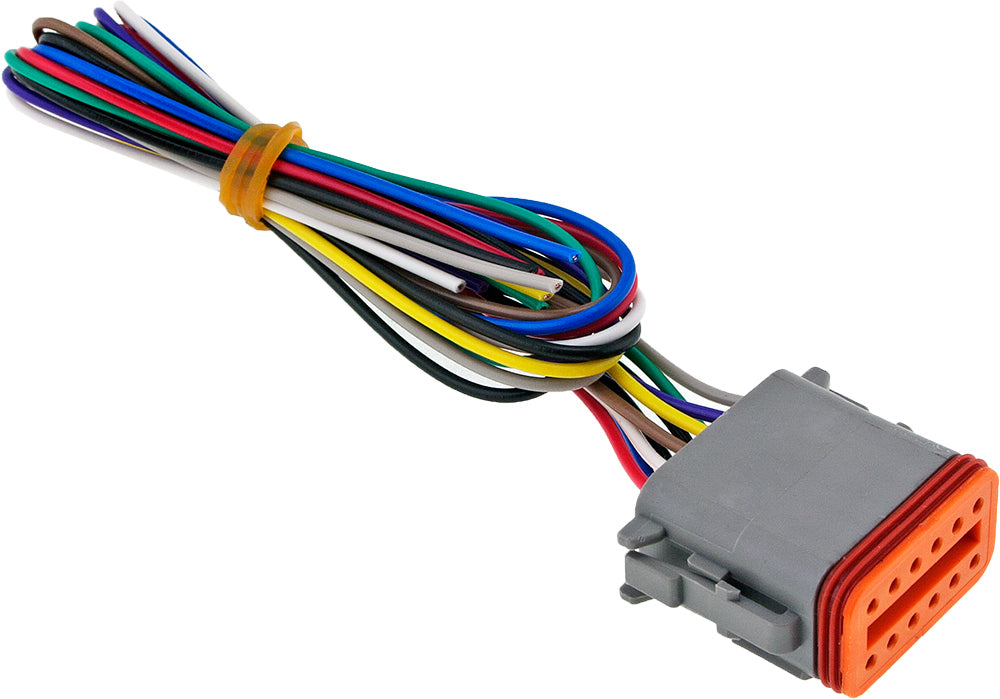

- Wire Harness to control the valves with external switches or remote

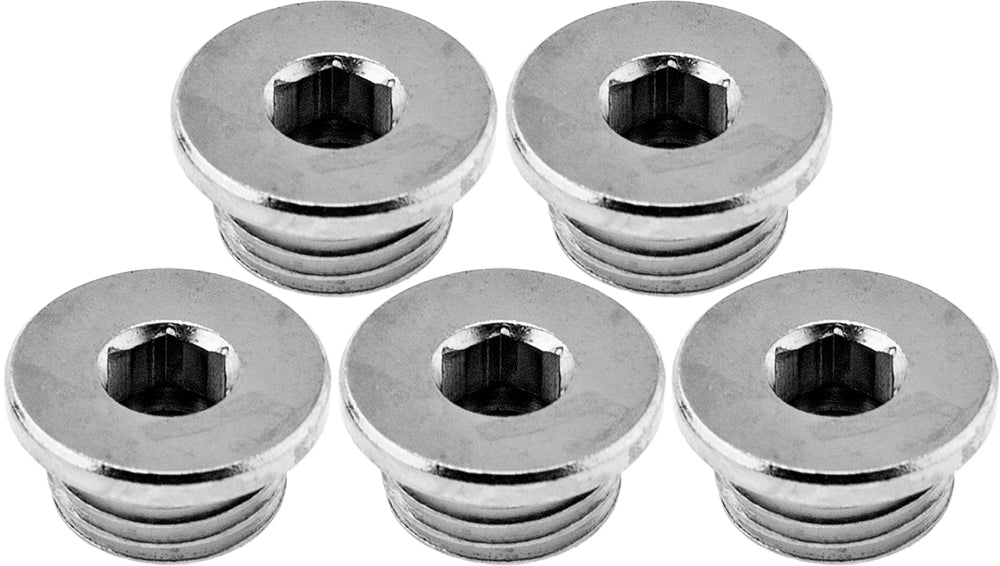

- ¼" NPT Male Plug x 1 (to close one intake port if running only one air line from the tank)
- ¼" NPT Male Plug x 4 (to close the Air Gauge Ports if not planning to use Air Gauges)

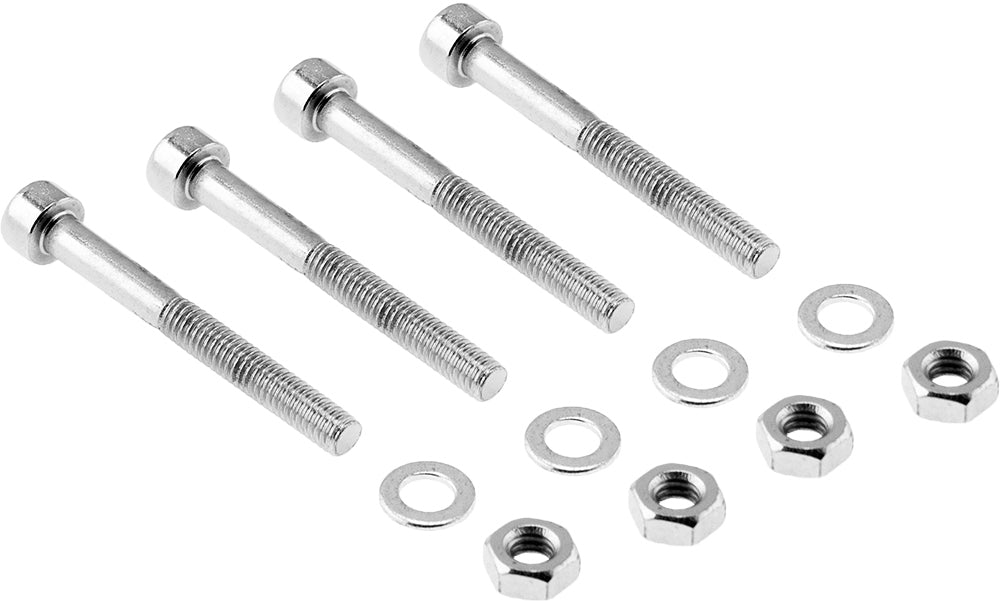

- Mounting Hardware
- Dimensions: 6-¼" W x 2-¾" H x 2-¾" D
