VIXEN AIR VXF2UM14CPRO 1/4" NPT SUSPENSION MANIFOLD
$158.98
Skip to product information

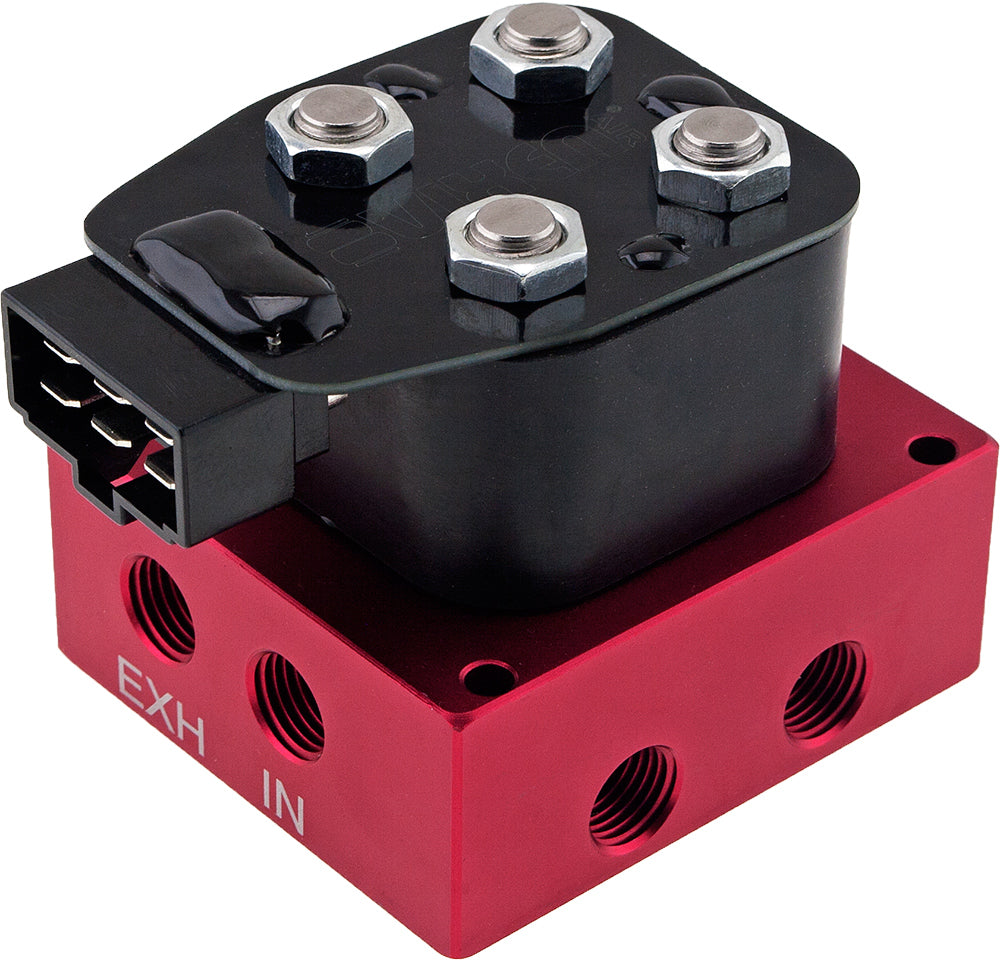

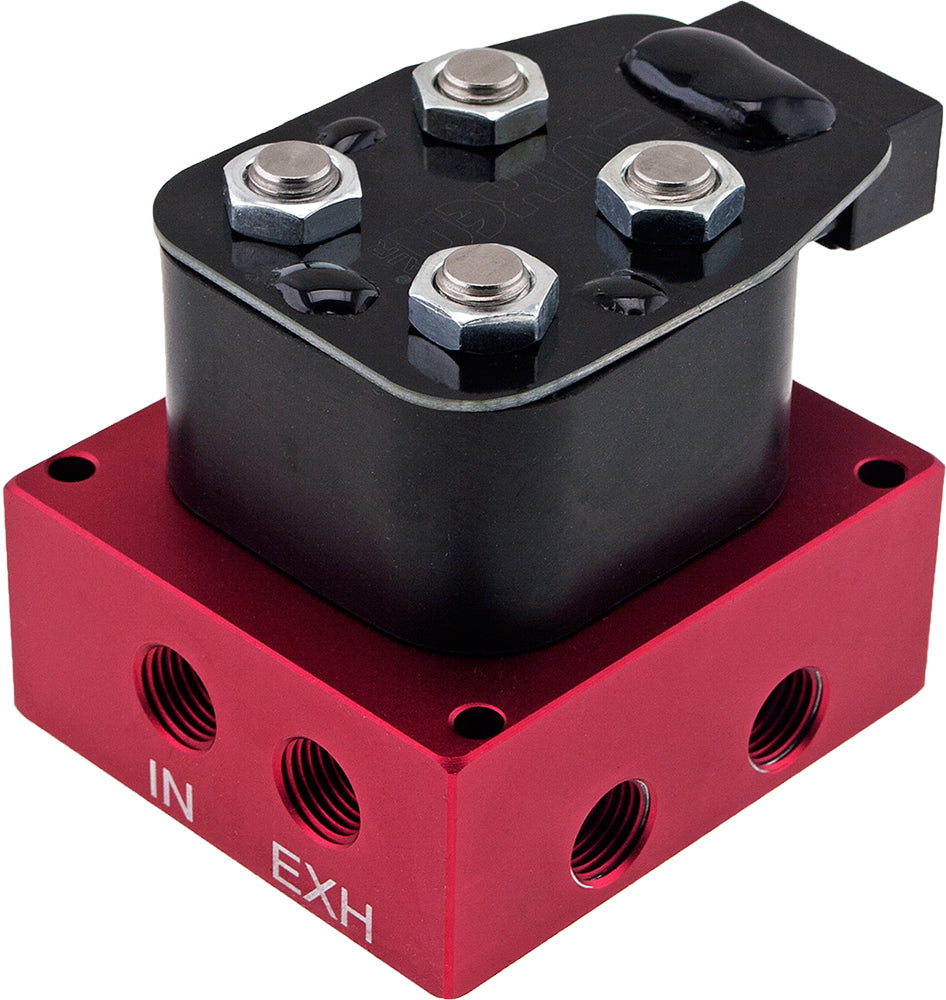

This manifold will inflate and deflate the air springs using two ¼" NPT intake and two ¼" NPT exhaust ports. The ports to connect the airlines with the air springs and air gauges are ¼" NPT. The robust internal solenoid valve structure maximizes flow rates and guarantees operation up to 230 PSI for millions of cycles. Can be connected to a switch panel or remote control using the included wire harness which provides a seamless installation and reliable operation.
VIXEN AIR VXF2UM14CPRO 1/4" NPT SUSPENSION MANIFOLD
$158.98
- ¼" NPT Suspension Manifold Air Valve (Red)
- Power Source: 12V
- Max Air Pressure: 230 PSI
- Two ¼" NPT Female Inlet ports
- Two ¼" NPT Female Exhaust ports
- Two ¼" NPT Female Air Spring Ports
- Two ¼" NPT Female Air Gauge Ports
- 2-way valves (normally closed)
- Pre-wired for easy Installation
- Included with this kit:

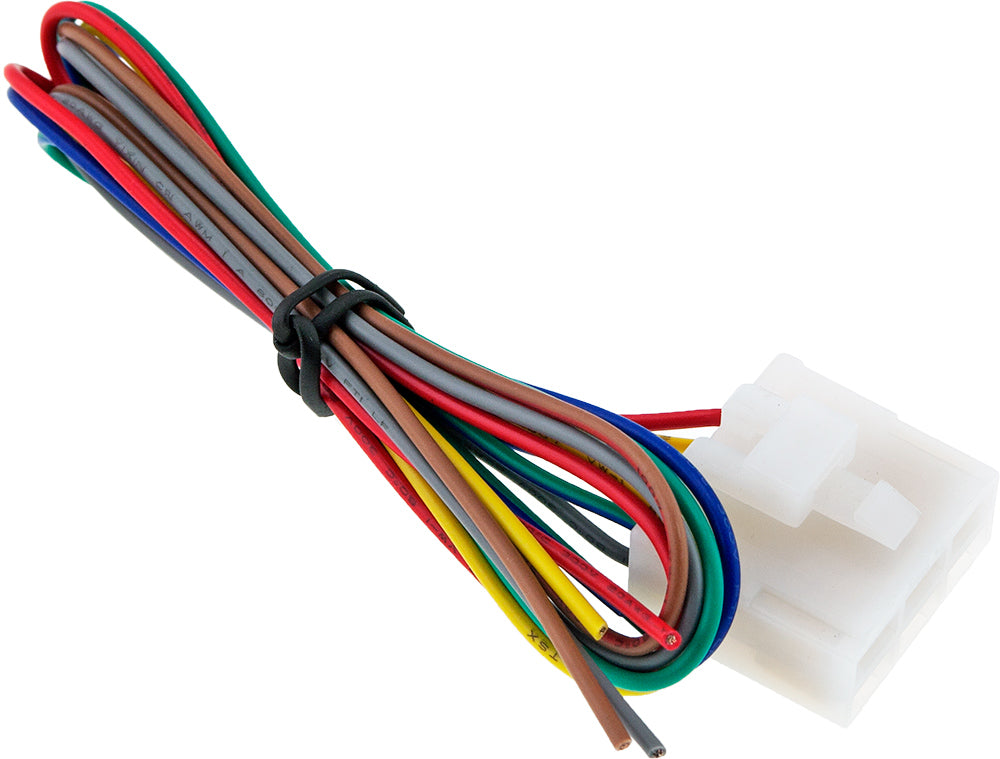

- Wire Harness to control the valves with external switches or remote

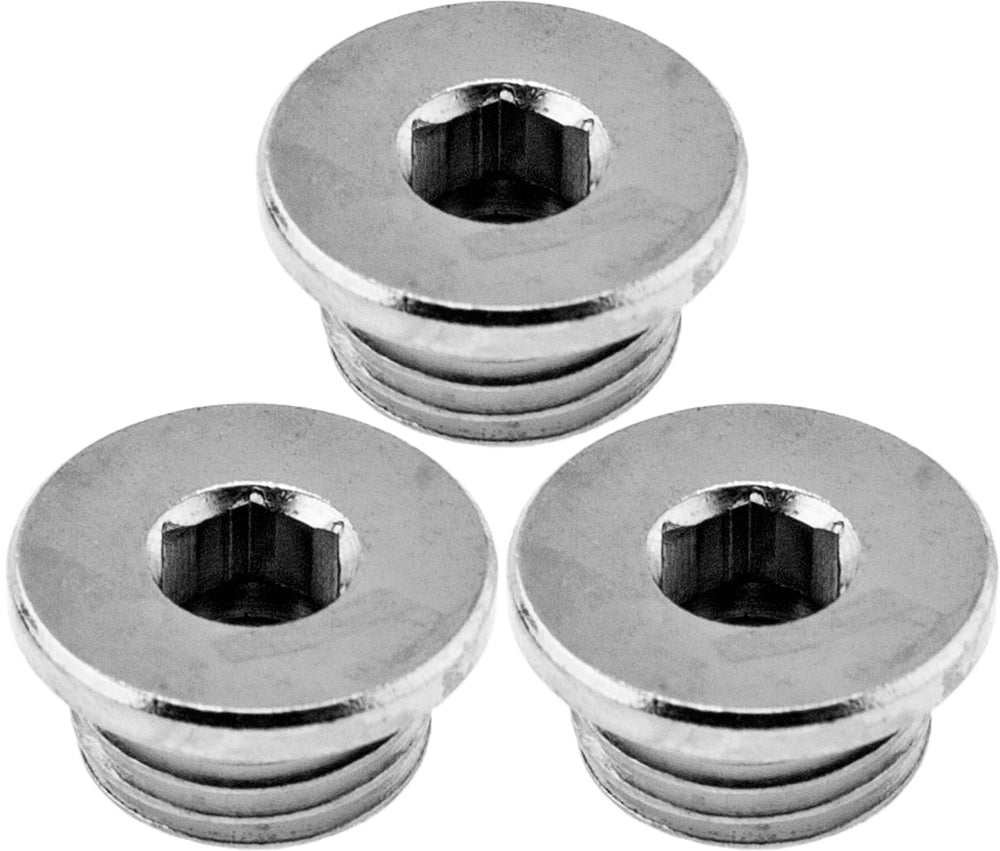

- ¼" NPT Male Plug x 1 (to close one intake port if running only one air line from the tank)
- ¼" NPT Male Plug x 2 (to close the Air Gauge Ports if not planning to use Air Gauges)

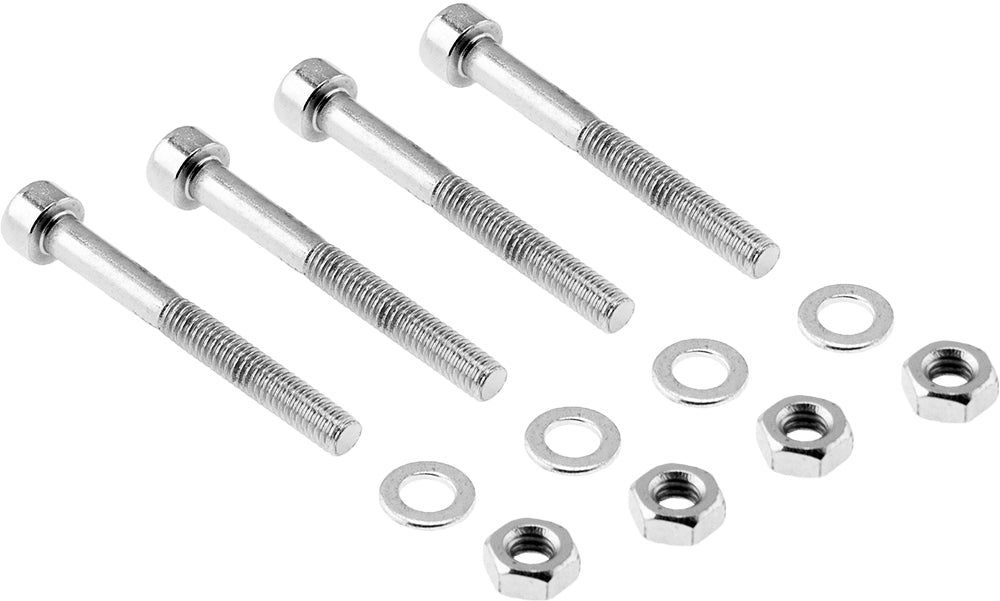

- Mounting Hardware
- Dimensions: 3-¾" W x 2-¾" H x 2-¾" D
