VIXEN HORNS VXO8350B/3418B TRIPLE TRUMPET TRAIN AIR HORN BLACK WITH 5 GALLON TANK AND 200 PSI COMPRESSOR

SKU: VXO8350B/3418B Tag:

Triple Trumpet Train Air Horn (Black), 200 PSI Air Compressor, 5 Gallon Air Tank, Thermal Overload Protection, Electric Air Valve, Pressure Gauge, Pressure Switch, Air Hose, Horn Button

FacebookTwitterPinterestTumblrLinkedinEmail

Description

A full train horn system, ready to install. At the heart of this package is the intense triple trumpet air horn, drawing immediate attention. Black color, made entirely of metal for maximum protection against all weather conditions. This system includes a 5 Gallon air tank, 200 PSI 12 volt black air compressor, pressure gauge, pressure switch, hose, fittings, horn button, thread sealant and mounting hardware. Ideal for all vehicles with a 12V system. A bold, loud choice.

  • Air Horn

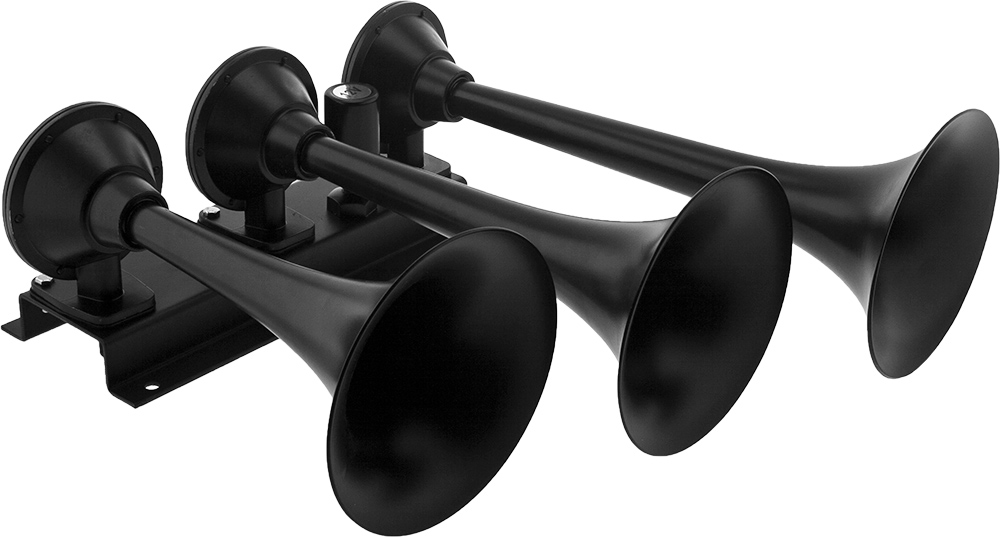

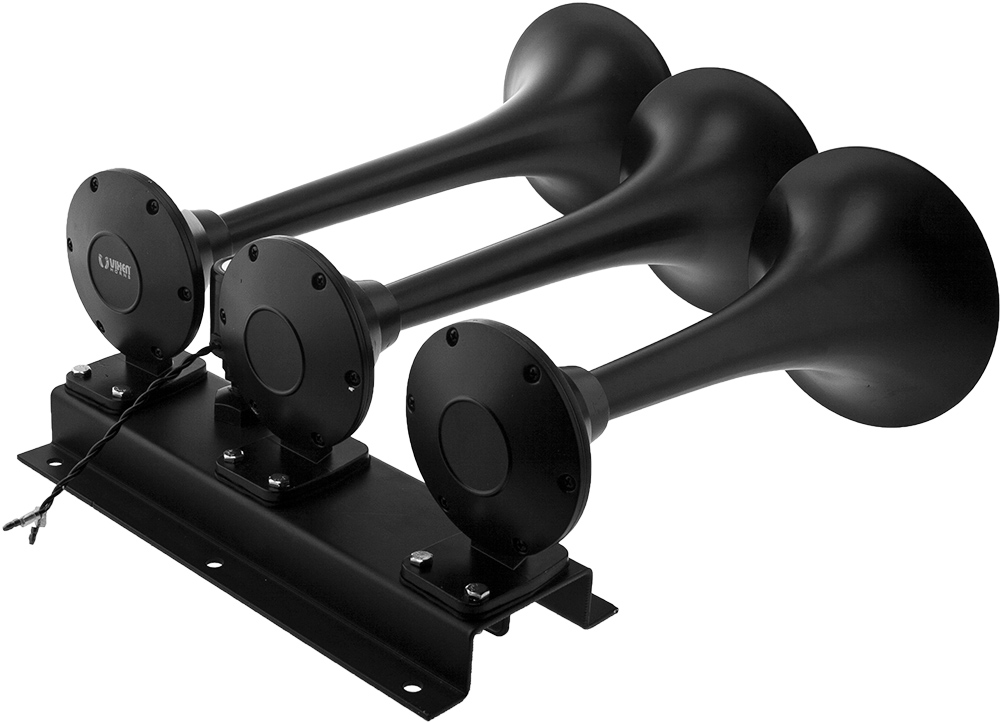

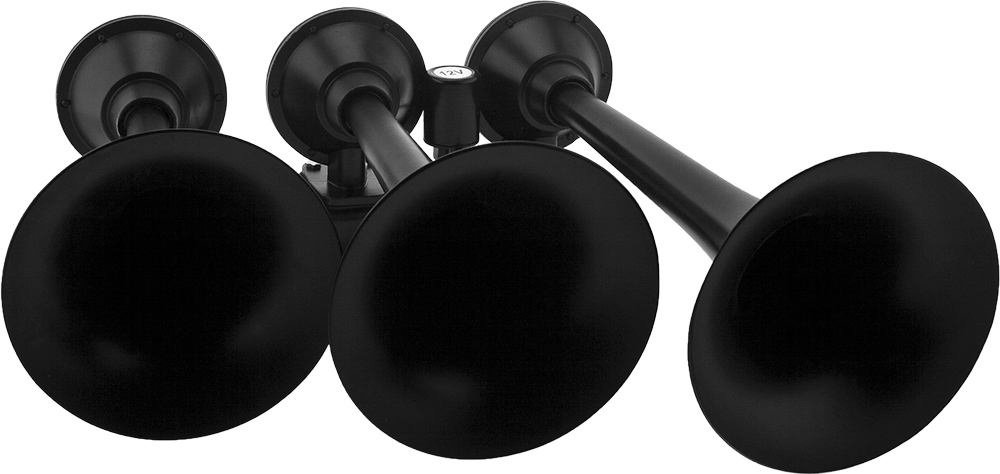

  • Triple Trumpet Train Air Horn (Black)
  • Metal Construction
  • 12V Electric Air Valve (Solenoid) with Compression Fitting
  • ¼” OD Nylon Plastic Hose (6 Feet)
  • Mounting Hardware Included
  • Dimensions: 19-¼” L x 18″ W x 7-½” H
  • Air Compressor
  • 200 PSI Air Compressor (Black)
  • 12V Permanent Magnetic Motor
  • Maximum Working Pressure: 200 PSI
  • Duty Cycle: 100% @ 100 PSI
  • Amperage Draw: 23A
  • Flow Rate: 1.7CFM @ 0 PSI
  • Oil-less Design
  • Moisture and Dust Resistant
  • Anodized Aluminum Alloy Cylinder
  • Automatic Reset Thermal Overload Protector
  • Mounting Plates with Vibration Isolators
  • ¼” NPT Stainless Steel Braided Leader Hose
  • Intake Filter Assembly
  • Insulated Wiring with Connectors
  • 30A In-line Fuse with Waterproof Holder
  • Mounting Hardware Included
  • Dimensions: 10-¾” L x 4″ W x 6-¾” H
  • Air Tank
  • 5 Gallon Air Tank Kit
  • Capacity: 5 Gallon (18 Liter)
  • Pressure Rating: 150 PSI, max 250 PSI
  • 8 Ports: 6 x ¼” NPT, 2 x ½” NPT
  • Anti-Corrosion Coating
  • Precision Welded

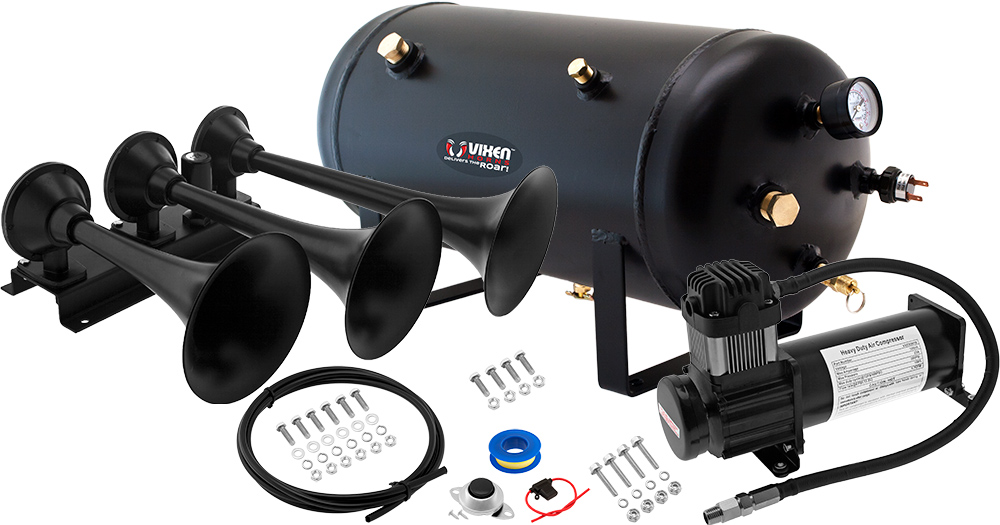

  • Included with this kit:
    • 5 Gallon Air Tank
    • 240 PSI Air Pressure Gauge
    • 170-200 PSI Pressure Switch
    • 250 PSI Safety Valve
    • ¼” NPT Wing Style Drain Valve
    • ¼” NPT Compression Fitting for ¼” OD Air Line
    • ¼” NPT Hex Head Male Plug
    • ½” NPT Hex Head Male Plug x 2
    • ¼” OD Nylon Plastic Hose (6 Feet)
    • 12mm Thread Sealant Tape (16 Feet)
    • Horn Button
    • Mounting Hardware
  • Dimensions: 20″ L x 10-½” H x 8-½” Dia

Additional information

Weight 49 lbs
Color

Black

Sound Type

Train

Power

12V

Compressor

Single 200 PSI

Tank

5 Gallon

Total Ports

8
