VIXEN HORNS VXO4830AB/3418B TRIPLE TRUMPET TRAIN AIR HORN BLACK WITH 3 GALLON ALUMINUM TANK AND 200 PSI COMPRESSOR

SKU: VXO4830AB/3418B Tag:

COUPON CODE AVAILABLE (VIXENDEAL5)

Triple Trumpet Train Air Horn (Black), 200 PSI Air Compressor, 3 Gallon Aluminum Air Tank, Thermal Overload Protection, Electric Air Valve, Pressure Gauge, Pressure Switch, Air Hose, Horn Button

FacebookTwitterPinterestTumblrLinkedinEmail

Description

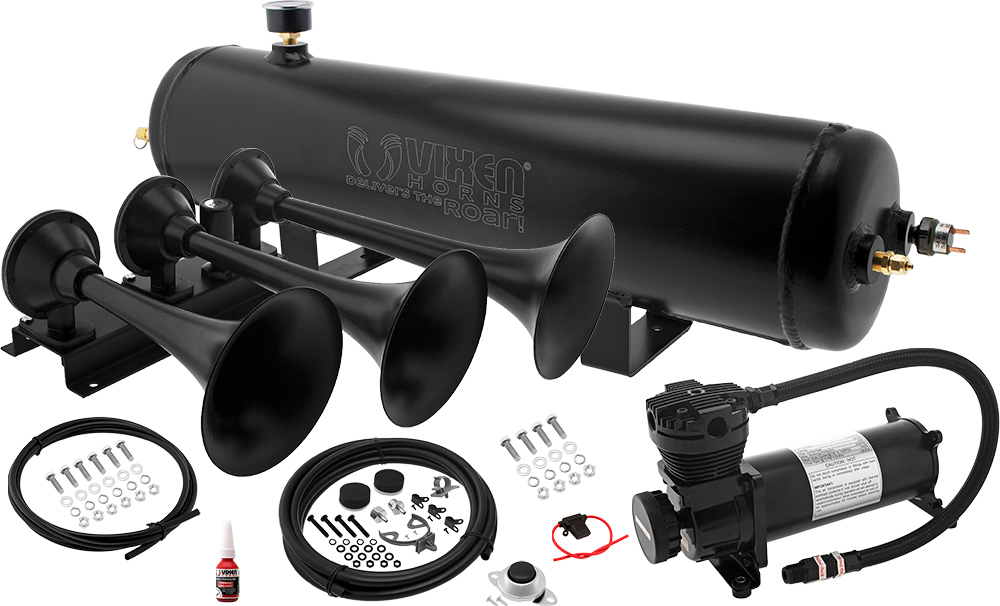

A full train horn system, ready to install. At the heart of this package is the intense triple trumpet air horn, drawing immediate attention. Black color, made entirely of metal for maximum protection against all weather conditions. This system includes a 3 Gallon aluminum air tank painted in black, 200 PSI 12 volt air compressor with remote filter kit, pressure gauge, pressure switch, hose, fittings, horn button, thread sealant and mounting hardware. Ideal for all vehicles with a 12V system. A bold, loud choice.

  • Air Horn

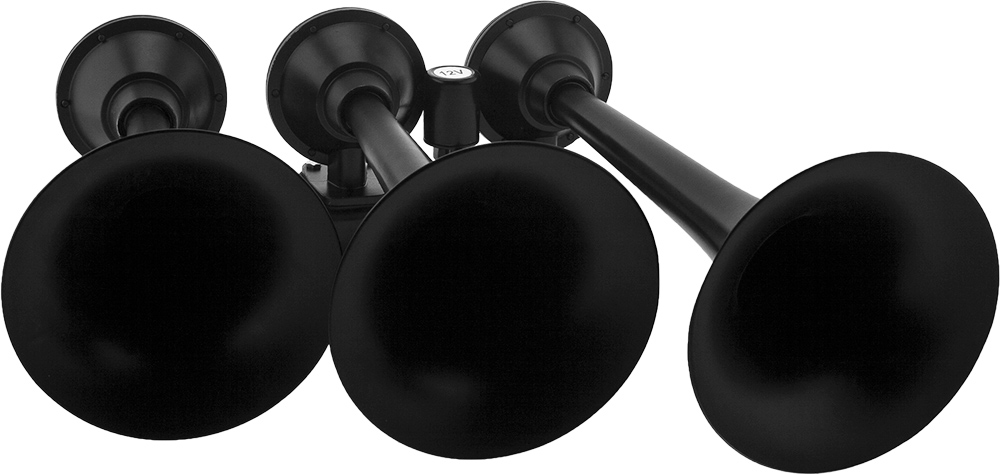

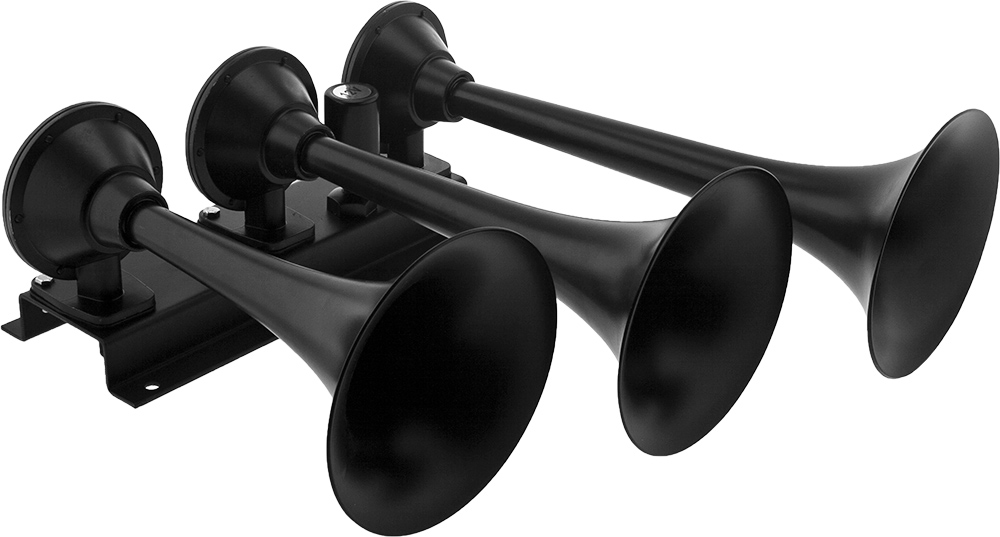

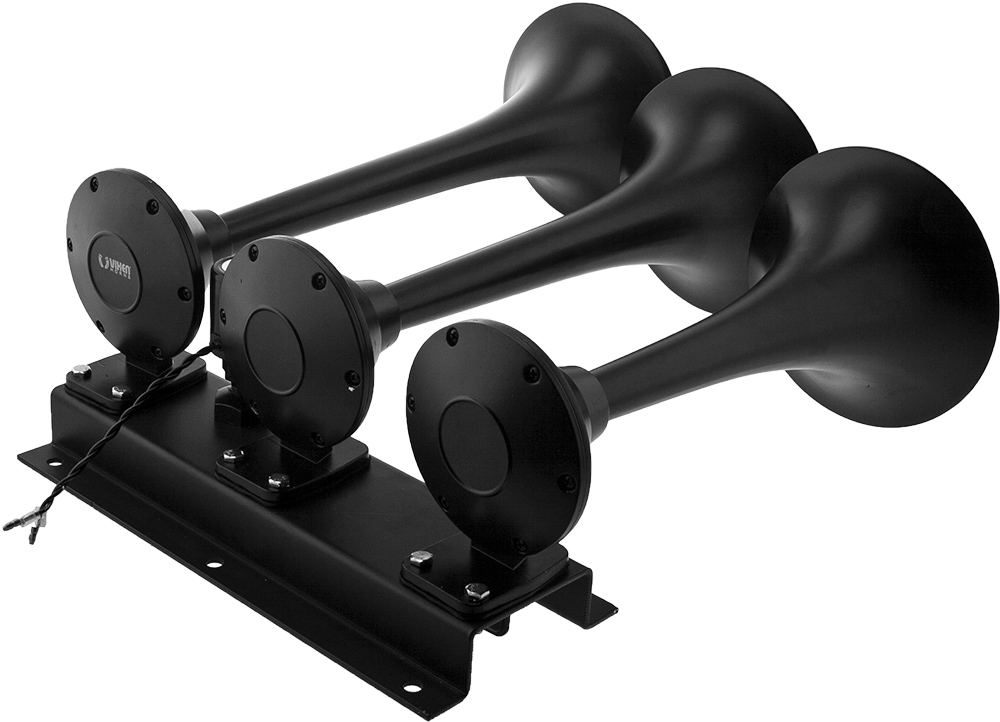

  • Triple Trumpet Train Air Horn (Black)
  • Metal Construction
  • 12V Electric Air Valve (Solenoid) with Compression Fitting
  • ¼” OD Nylon Plastic Hose (6 Feet)
  • Mounting Hardware Included
  • Dimensions: 19-¼” L x 18″ W x 7-½” H
  • Air Compressor
  • 200 PSI Air Compressor Black
  • 12V Permanent Magnetic Motor
  • Maximum Working Pressure: 200 PSI
  • Duty Cycle: 100% @ 100 PSI
  • Amperage Draw: 23A
  • Flow Rate: 1.8CFM @ 0 PSI
  • Sealed Construction
  • Oil-less Design
  • Moisture and Dust Resistant
  • Anodized Aluminum Alloy Cylinder
  • Automatic Reset Thermal Overload Protector
  • Mounting Plates with Vibration Isolators
  • 3/8″ NPT Stainless Steel Braided Leader Hose with 3/8″ NPT Check Valve
  • Intake Air Filter with Remote Installation Kit (Two replacement filter elements Included)
  • Insulated Wiring with Connectors
  • 40A In-line Fuse with Waterproof Holder
  • Mounting Hardware Included
  • Dimensions: 13-¾” L x 4″ W x 6-¾” H
  • Air Tank
  • 3 Gallon Aluminum Air Tank (Black)
  • Capacity: 3 Gallon (12 Liter)
  • Pressure Rating: 200 PSI
  • 6 Ports: 5 x ¼” NPT, 1 x 3/8″ NPT
  • 100% Rust Resistant
  • Black Painted
  • High quality T.I.G welds for better sealing
  • Included with this kit:
    • 3 Gallon Aluminum Air Tank
    • 240 PSI Air Pressure Gauge
    • 170-200 PSI Pressure Switch
    • 250 PSI Safety Valve
    • ¼” NPT Wing Style Drain Valve
    • ¼” NPT Compression Fitting for ¼” OD Air Line
    • ¼” OD Nylon Plastic Hose (6 Feet)
    • 3/8″ OD Nylon Plastic Hose (10 Feet)
    • 10ml Liquid Thread Sealant
    • Horn Button
    • Mounting Hardware
  • Dimensions: 23-½” L x 8″ H x 6-¼” Dia

Additional information

Weight 38 lbs
Color

Black

Sound Type

Train

Power

12V

Compressor

Single 150 PSI

Tank

3 Gallon

Total Ports

6
