VIXEN AIR VXO8831DBF 3 GALLON STEEL AIR TANK WITH DUAL CYLINDER 300 PSI AIR COMPRESSOR ONBOARD AIR SYSTEM

Description

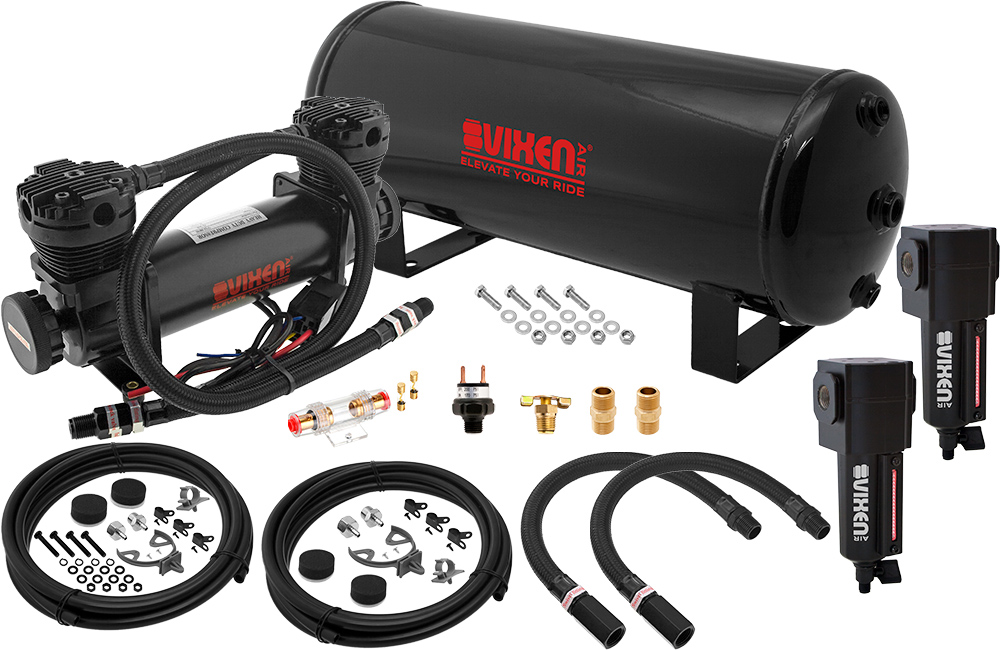

This on-board system is specifically designed for air suspension but can also be used with any high-pressure air horn or power tool that requires an on-board air system. Comes with a 3 Gallon steel air tank featuring 7 air ports, 300 PSI heavy duty black color dual cylinder air compressor with remote filter kits, hoses extensions, pressure switch, water traps with couplings, drain valve, heavy duty 80A in-line relay, 60A in-line fuse with waterproof holder, and mounting hardware. This system will set your vehicle above the rest.

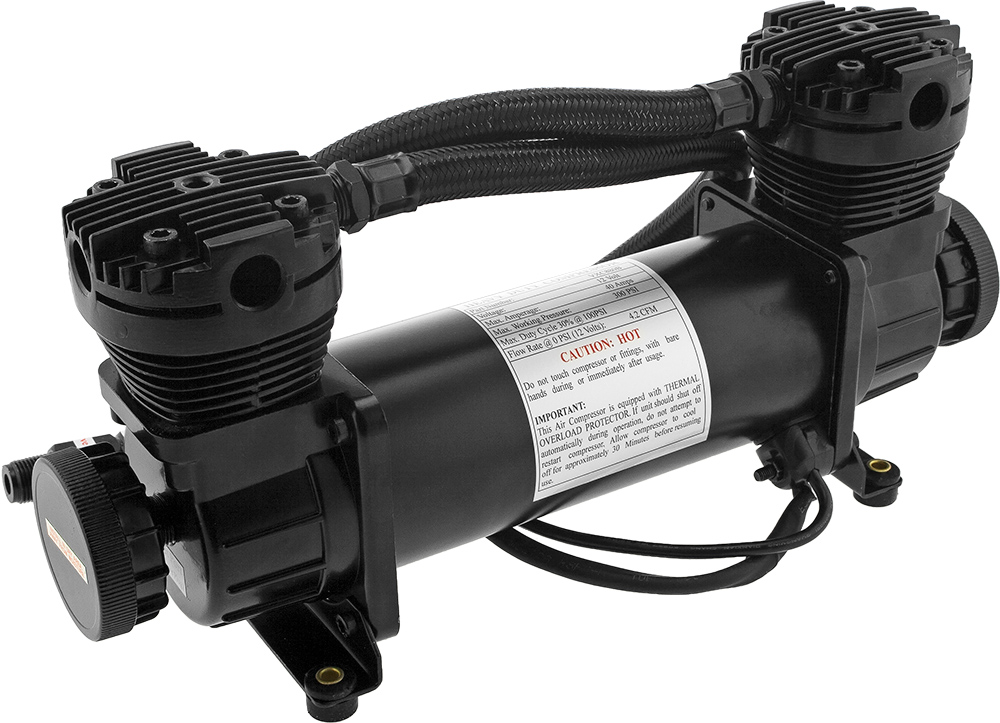

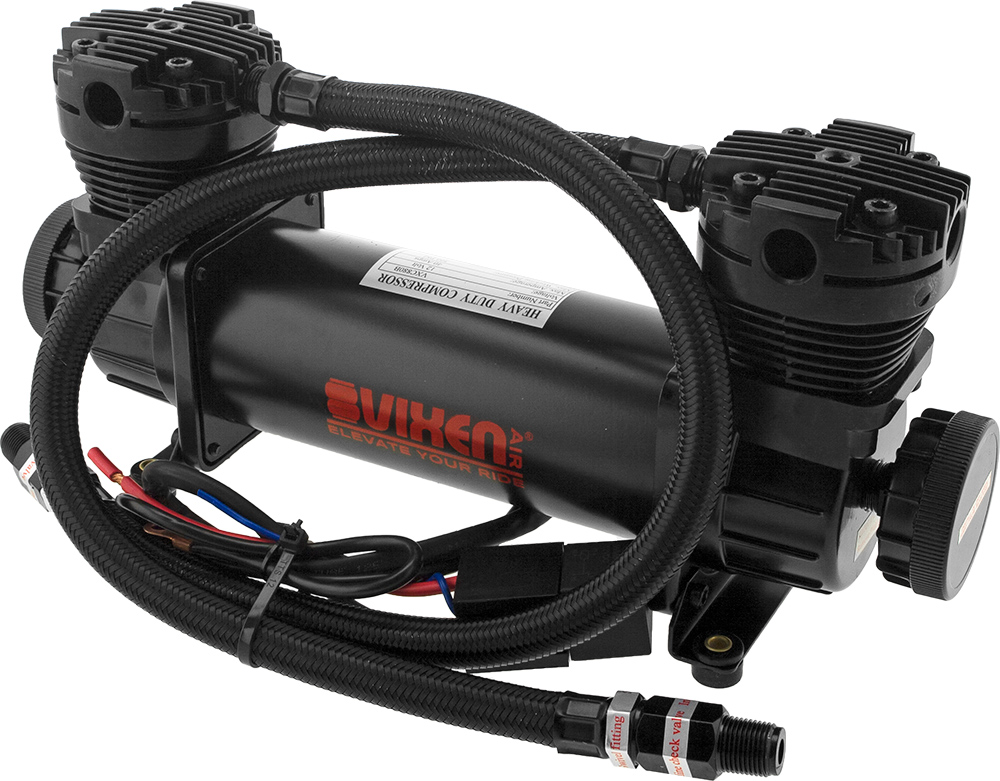

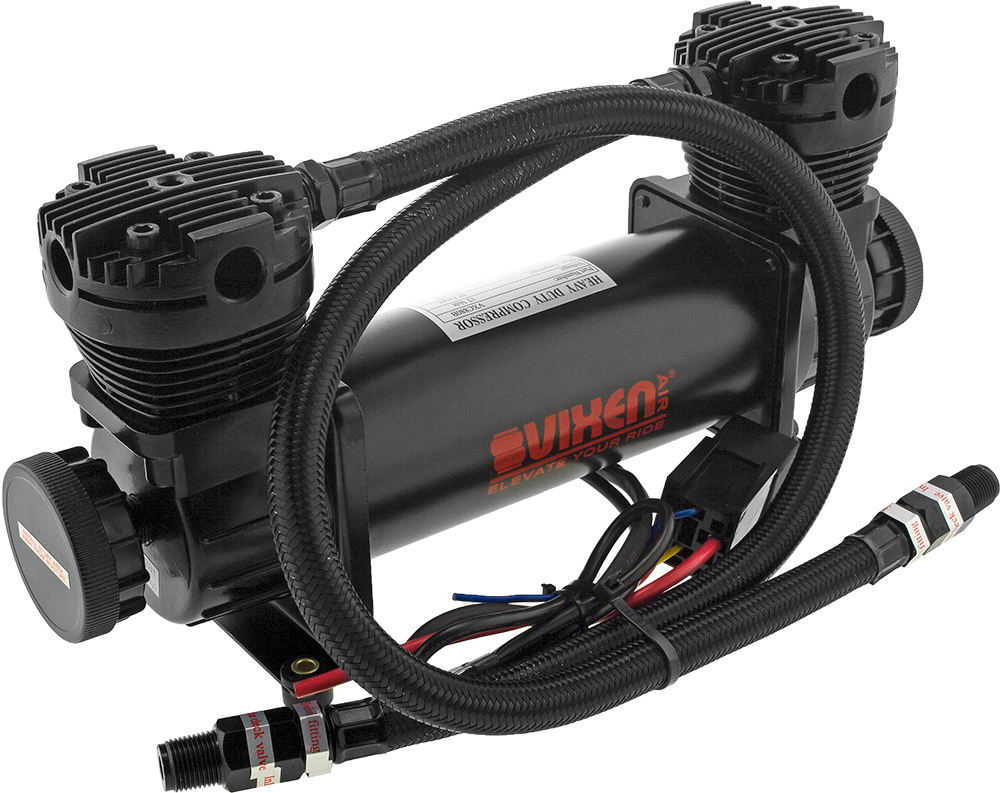

• Air Compressor
• 300 PSI Dual Cylinder VortexX Air Compressor Black
• 12V Permanent Magnetic Motor
• Maximum Working Pressure: 300 PSI
• Duty Cycle: 30% @ 100 PSI
• Amperage Draw: 40A
• Flow Rate: 4.2CFM @ 0 PSI
• Sealed Construction
• Oil-less Design
• Moisture and Dust Resistant
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates with Vibration Isolators
• 3/8″ NPT Stainless Steel Braided Leader Hoses with 3/8″ NPT Check Valves
• Intake Air Filters with Remote Installation Kit (10 FT Hoses and Four replacement filter elements Included)
• Insulated Wiring with Connectors
• 80A 4-PIN In-line Relay
• 60A In-line Fuse with Waterproof Holder
• Mounting Hardware Included
• Dimensions: 14″ L x 4″ W x 6-¾” H

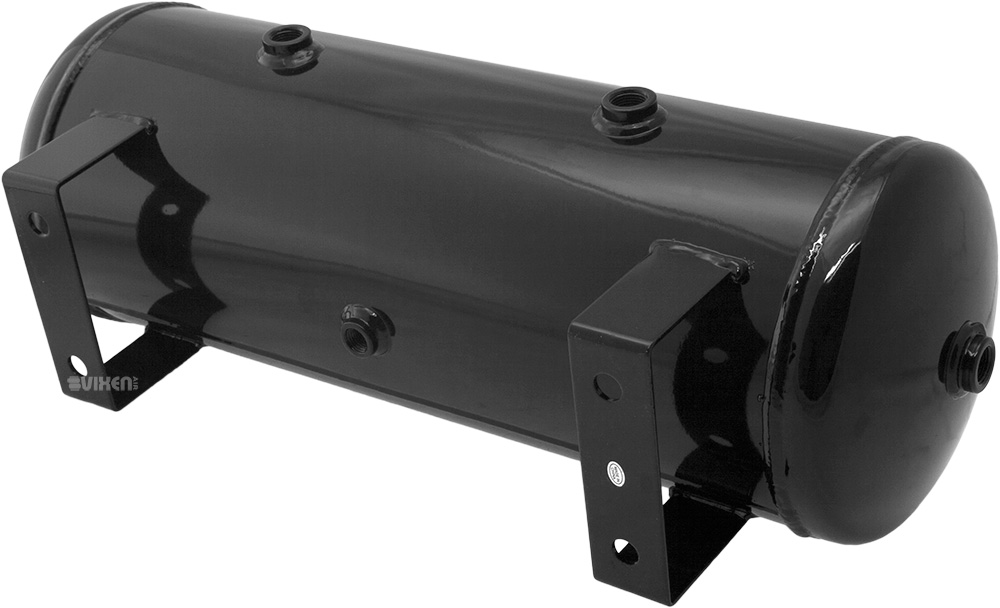

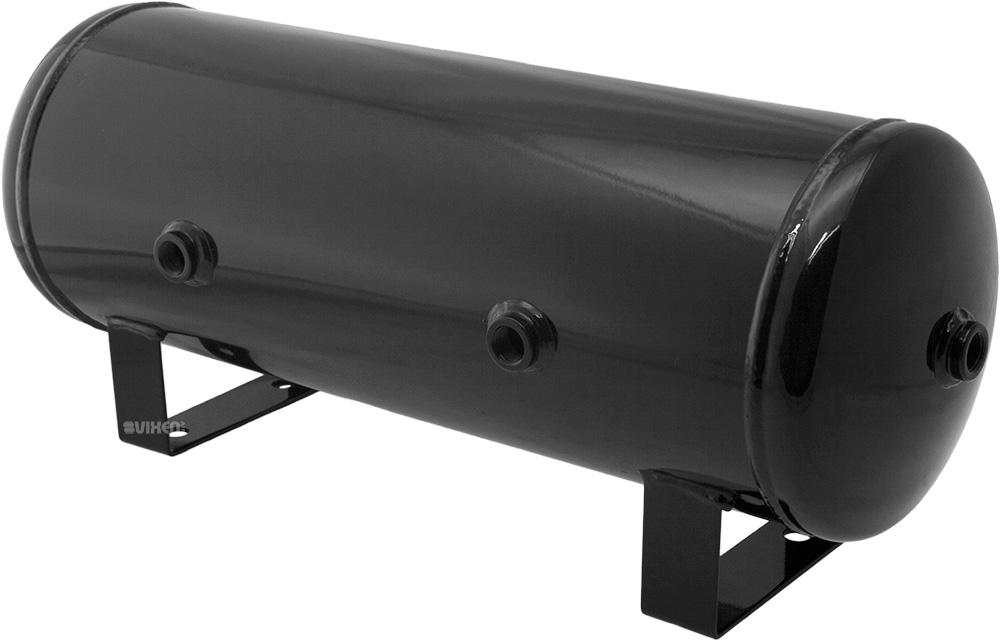

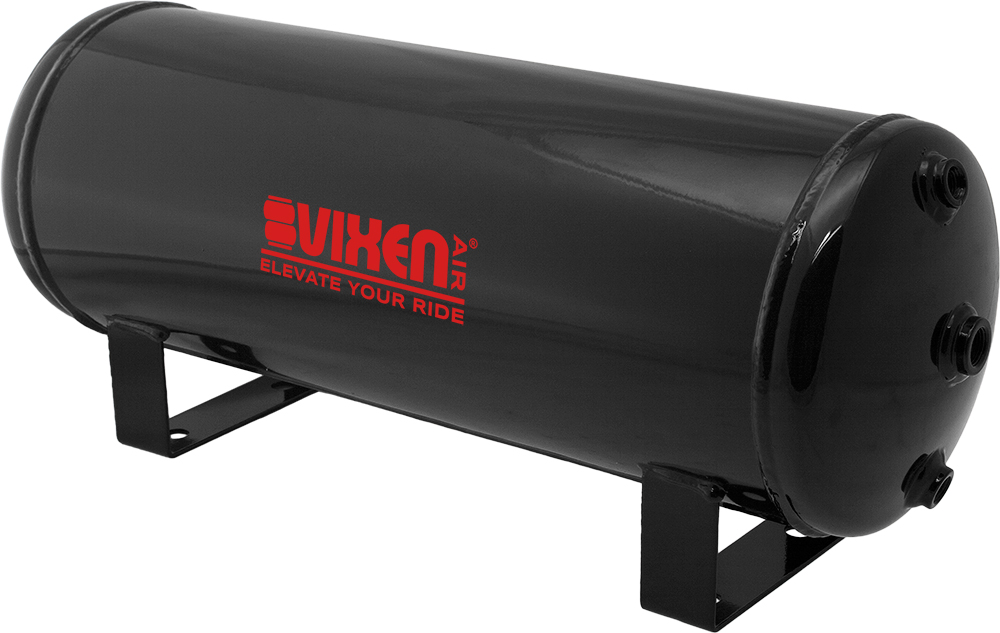

• Air Tank
• 3 Gallon Steel Air Tank
• Capacity: 3 Gallon (12 Liter)
• Pressure Rating: 200 PSI
• 7 Ports: 4 x 3/8″ NPT, 3 x ¼” NPT
• For high air flow applications such as Air Suspension and Train Horns
• Anti-Corrosion Coating
• Precision Welded

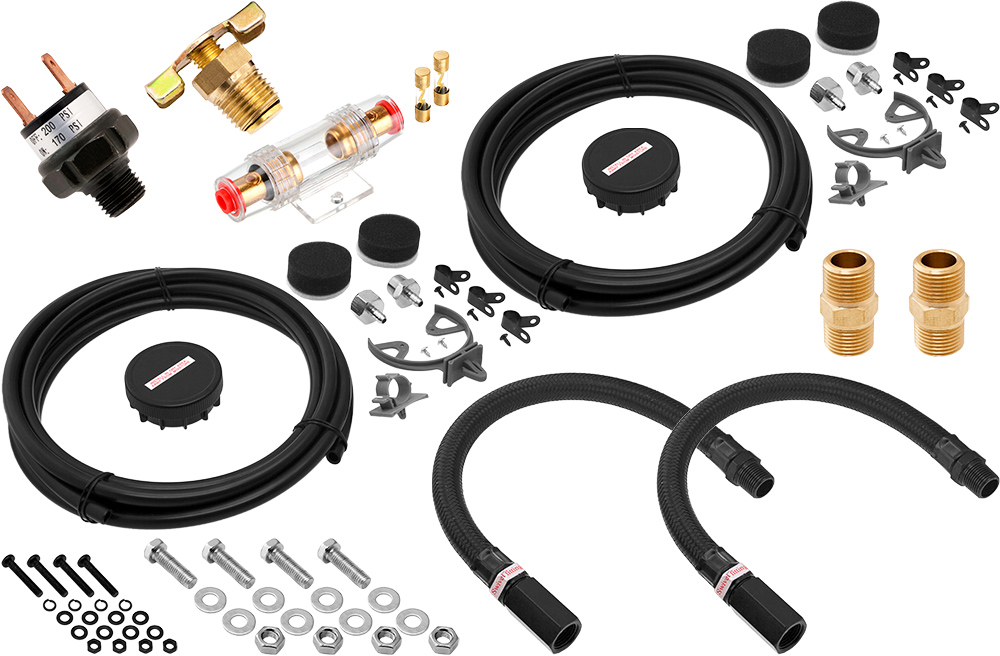

• Included with this kit:
  • 3 Gallon Steel Air Tank
  • 170-200 PSI Pressure Switch
  • 3/8″ NPT In-line Aluminum Air Filter (Water Trap) x 2
  • 3/8″ NPT Male Straight Coupling x 2
  • 3/8″ NPT Female to Male Braided Leader Hose 12″ Extension (Black) x 2
  • ¼” NPT Wing Style Drain Valve
  • Mounting Hardware
• Dimensions: 19-¾” L x 8-¾” H, 7″ Dia
