VIXEN AIR VXO4841BI 4 GALLON STEEL AIR TANK WITH 200 PSI AIR COMPRESSOR AND TIRE INFLATION KIT ONBOARD AIR SYSTEM

Description

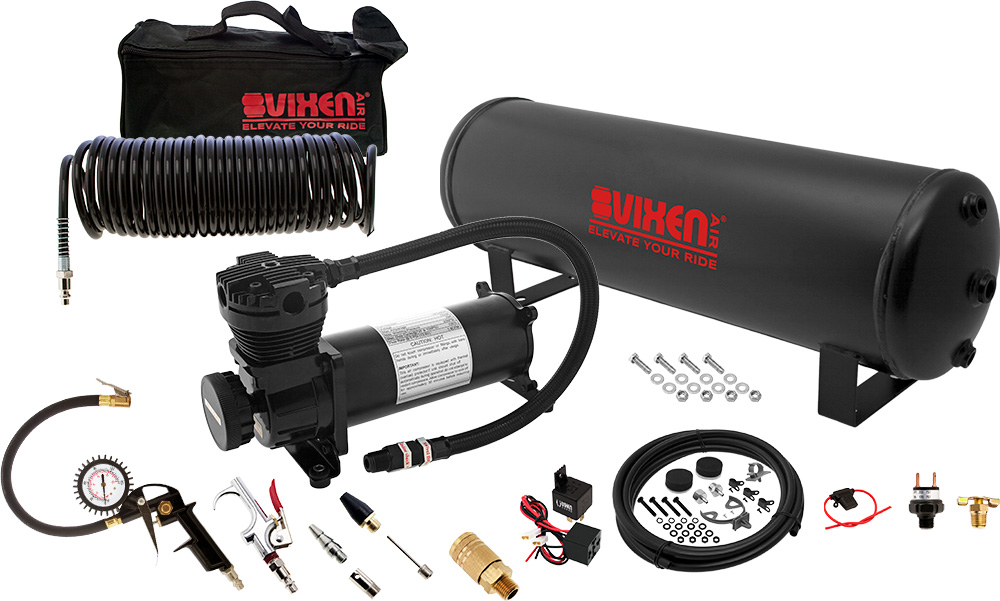

This on-board system is specifically designed for air suspension but can also be used with any high-pressure air horn or power tool that requires an on-board air system. Comes with a 4 Gallon steel air tank featuring 7 air ports, one 200 PSI heavy duty black color air compressor with remote filter kit, pressure switch, drain valve, heavy duty 40A relay with pre-wired plug, 40A in-line fuse, tire inflation kit with blow gun and mounting hardware. This system will set your vehicle above the rest.

• Air Compressor
• 200 PSI Air Compressor Black
• 12V Permanent Magnetic Motor
• Maximum Working Pressure: 200 PSI
• Duty Cycle: 100% @ 100 PSI
• Amperage Draw: 23A
• Flow Rate: 1.8CFM @ 0 PSI
• Sealed Construction
• Oil-less Design
• Moisture and Dust Resistant
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates with Vibration Isolators
• 3/8″ NPT Stainless Steel Braided Leader Hose with 3/8″ NPT Check Valve
• Intake Air Filter with Remote Installation Kit (10 FT Hose and Two replacement filter elements Included)
• Insulated Wiring with Connectors
• 40A 4-PIN Relay with Pre-wired Plug
• 40A In-line Fuse with Waterproof Holder
• Mounting Hardware Included
• Dimensions: 13-¾” L x 4″ W x 6-¾” H

• Air Tank
• 4 Gallon Steel Air Tank
• Capacity: 4 Gallon (15 Liter)
• Pressure Rating: 200 PSI
• 7 Ports: 4 x 3/8″ NPT, 3 x ¼” NPT
• For high air flow applications such as Air Suspension and Train Horns
• Anti-Corrosion Black Matte Powder Coating
• Precision Welded
• Included with this kit:
  • 4 Gallon Steel Air Tank
  • 170-200 PSI Pressure Switch
  • ¼” NPT Wing Style Drain Valve
  • Mounting Hardware
• Dimensions: 24″ L x 8-¾” H, 7″ Dia

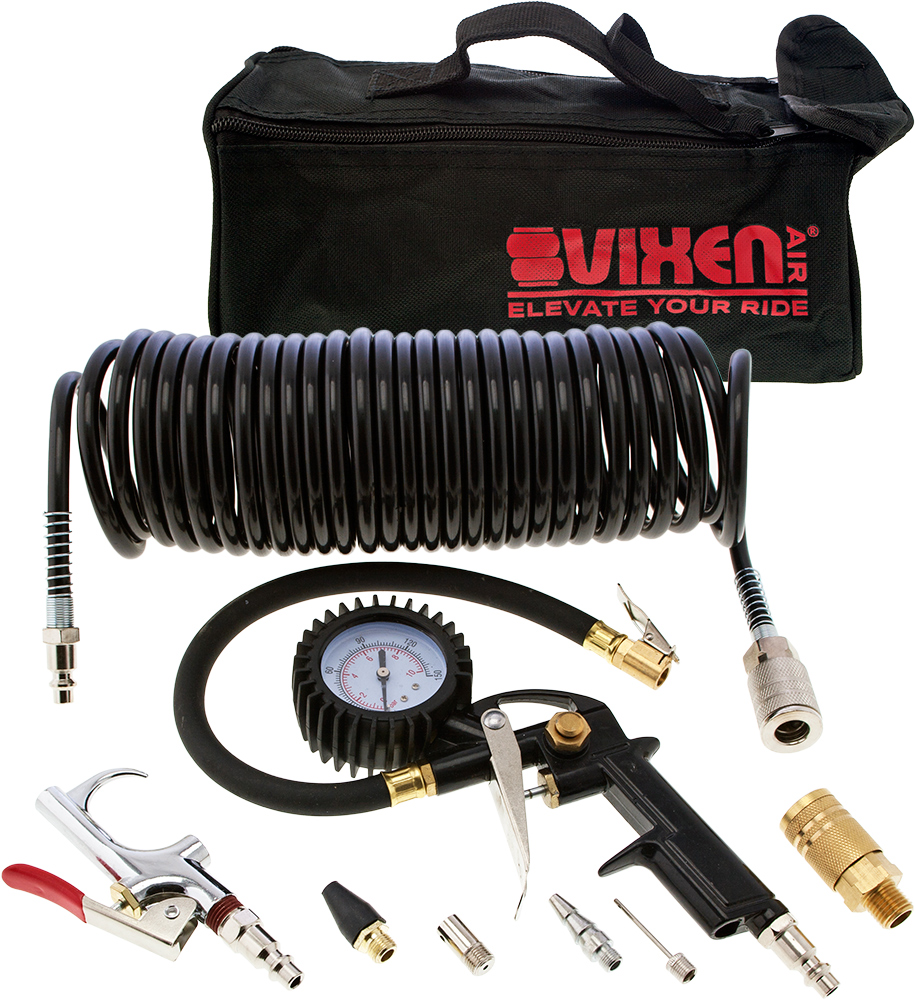

• Tire Inflation Kit with Blow Gun
• 150 PSI Pressure Gauge
• Accurately Reads Device’s Pressure
• Air Bleed Button on Tire Inflator Gun for Pressure Adjustments
• Universal Multipurpose Adapters
• Rust and Corrosion Resistant
• Flexible Heavy Duty Hoses
• Included in this kit:
  • Tire Inflator Gun with Pressure Gauge and 12″ Rubber Hose
  • 35 FT Coil Hose with Quick Connect Stud and Coupler
  • Blow Gun with Quick Connect Stud
  • ¼” NPT Male Quick Connect Coupler (For Air Tank)
  • Blow Gun Tip
  • Tapered Inflation Nozzle
  • Inflation Needle
  • Safety Blow Gun Tip
  • Carry Bag
